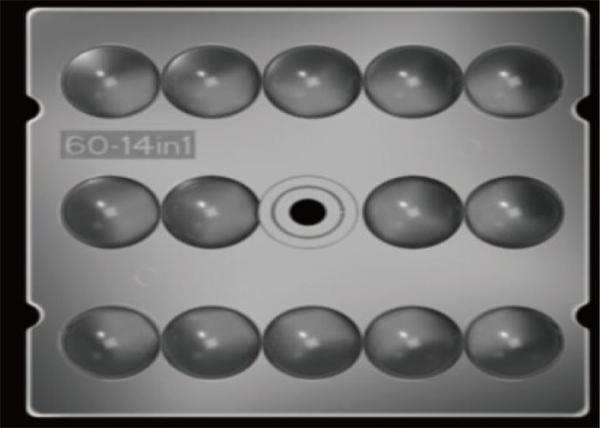

Type 3 Vehicle LED Street Light Retrofit Kits Lens Common Materials Plastic / Silicone

70*140 Degree 3 Vehicle Lanes Led Lens LED Street Light Retrofit Kits 3030

A simple Lens consists of a single piece of material, while a compound Lens consists of several simple lenses (elements), usually along a common axis.

LED lenses come in various shapes and sizes, for example round, square and hexagonal. Common lens materials include plastic and silicone. Therefore some are rigid and some are flexible.

Lenses are designed for use with single or multiple LEDs. This includes LED modules or strips.
They sit over the LEDs to create the desired lighting effect. Various properties of LED lenses enable precise control over the beams of light.

Delivery and Shipping:

• Optical efficiency is determined by measuring the ratio of light collected after the optic and dividing by the total amount of light without an optic directly at the LED source.
• Number of LEDs per Lens refers to the number of LEDs that the lens is designed for. They can be for single LEDs or arrays of LEDs.
• Multiple LED lenses are ideal for wide area lighting, for example street lighting.
• Lenses are often designed for use with specific LEDs. Check the manufacturer data for compatible LED options.
• Some manufacturers pre-mount LEDs onto a board ready for the lens/reflector to sit over, saving you having to solder and line the LEDs up accurately.

LED lens Drawing:

IES:

5050 led lens

led multi lens

Type 3 Vehicle LED Street Light Retrofit Kits Lens Common Materials Plastic / Silicone Images
